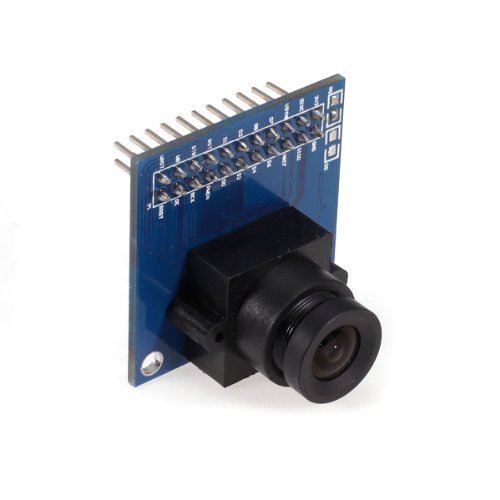

640x480 CMOS Camera Module OV7670 VGA YUV SNR 46 dB with High Quality Lens / Standard SCCB Interface Compatible with I2C Interface, with AL422 3M-Bits FIFO
From ColorMax
Product Description
Description:
Raw RGB, RGB (GRB4:2:2, RGB565/555/444),YUV(4:2:2) and YCbCr(4:2:2)output format
Support VGA, CIF and from CIF to 40 x 30 format
Vario Pixel method for sub-sampling
Auto Image Control: AEC, AGC, AWB, ABF, ABLC
Image Quality Control: Color saturation, hue, gamma, sharpness and anti-blooming
ISP includes noise reduction and defect correction
Support image scaling
Lens shading correction
Flicker 50/60Hz auto detection
Color saturation level auto adjust
Edge enhancement level auto adjust
De-noise level auto adjust
Parameter:
Photosensitive Array: 640 x 480
IO Voltage: 2.5V to 3.0V
Operating Power: 60mW/15fpsVGAYUV
Sleeping Mode: less than 20?A
Operating Temperature: -30 to 70 deg C
Output Format: YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit)
Lens Size: 1/6 inch
Vision Angle: 25 degree
Max. Frame Rate: 30fps VGA
Sensitivity: 1.3V / (Lux-sec)
Signal to Noise Ratio: 46 dB
Dynamic Range: 52 dB
Browse Mode: By row
Electronic Exposure: 1 to 510 row
Pixel Coverage: 3.6?m x 3.6?m
Duck Current:: 12 mV/s at 60?
PCB Size (L x W): Approx. 1.4 x 1.4 inch / 3.5 x 3.5 cm
Package Includes:
1 x OV7670 Camera Module
Product Details
- Brand: ColorMax
- Model: CS203
Features
- Low operating voltage for embedded application
- A great camera module for DIY / comes with high quality lens
- Standard SCCB interface compatible with I2C interface
- With AL422 3M-Bits FIFO
